7/0.7MM STEEL WIRE STRAND

Surface:Galvanized
Tensile Strength :1770MPA
Trademark:Julong
HS CODE:7312100000

WIRE ROPE 1X7, CONSTRUCTION:1+6

Construction	Wire Diameter (mm)	Guy Rope Diameter	Guv Rope Section (mm2)	Tensile Strength of Rope					Weight of Zinc Coat (g/m2)	Approx.Weight (kg/100m)
				1370	1470	1570	1670	1770
				Total Breaking Load of Wires-not less than (KN)
1*7	0.50 0.60 0.70 0.80 0.90 1.00 1.20 1.40 1.60 1.80 2.00 2.30 2.60 2.90 3.00 3.50 3.80 4.00	1.5 1.8 2.1 2.4 2.7 3.0 3.6 4.2 4.8 5.4 6.0 6.9 7.8 8.7 9.6 10.5 11.4 12.0	1.37 1.98 2.69 3.52 4.45 5.50 7.92 10.78 14.07 17.87 21.99 29.08 37.17 46.24 56.30 67.35 79.39 87.95	7.54 10.85 14.77 19.28 24.40 30.13 39.84 50.92 63.35 77.13 92.27 108.76 120.64	2.02 2.91 3.96 5.17 6.54 8.08 11.64 15.85 20.68 26.18 32.32 42.75 54.63 67.97 82.76 98.98 116.68 129.28	2.16 3.11 4.23 5.53 6.99 8.64 12.43 16.92 22.09 27.96 34.52 45.66 58.41 72.66 77.76 105.84 124.76 138.24	2.30 3.31 4.50 5.88 7.44 9.19 13.22 17.99 24.35 29.74 36.71 44.48 48.56	2.44 3.51 4.77 6.23 7.89 9,74 13.98 19.07 24.90 31.52 38.91 47.14 51.47	50 50 60 60 70 185 185 185 200 215 230 230 230 230 230 245 260 260	1.09 1.57 2.14 2.79 3.54 4.37 6.29 8.56 11.17 14.14 17.46 23.09 29.51 36.71 44.70 53.48 63.04 69.92

Specification :

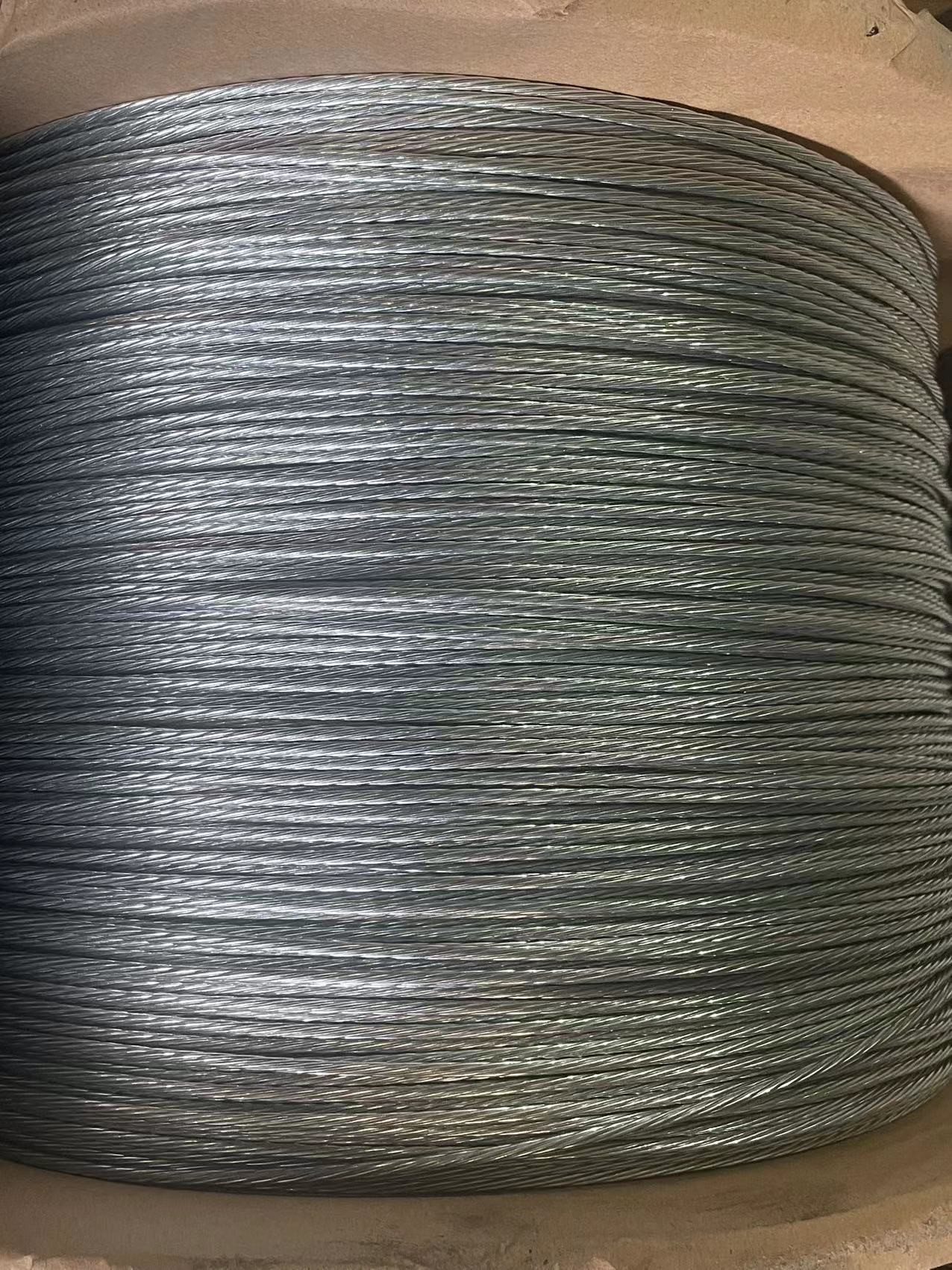

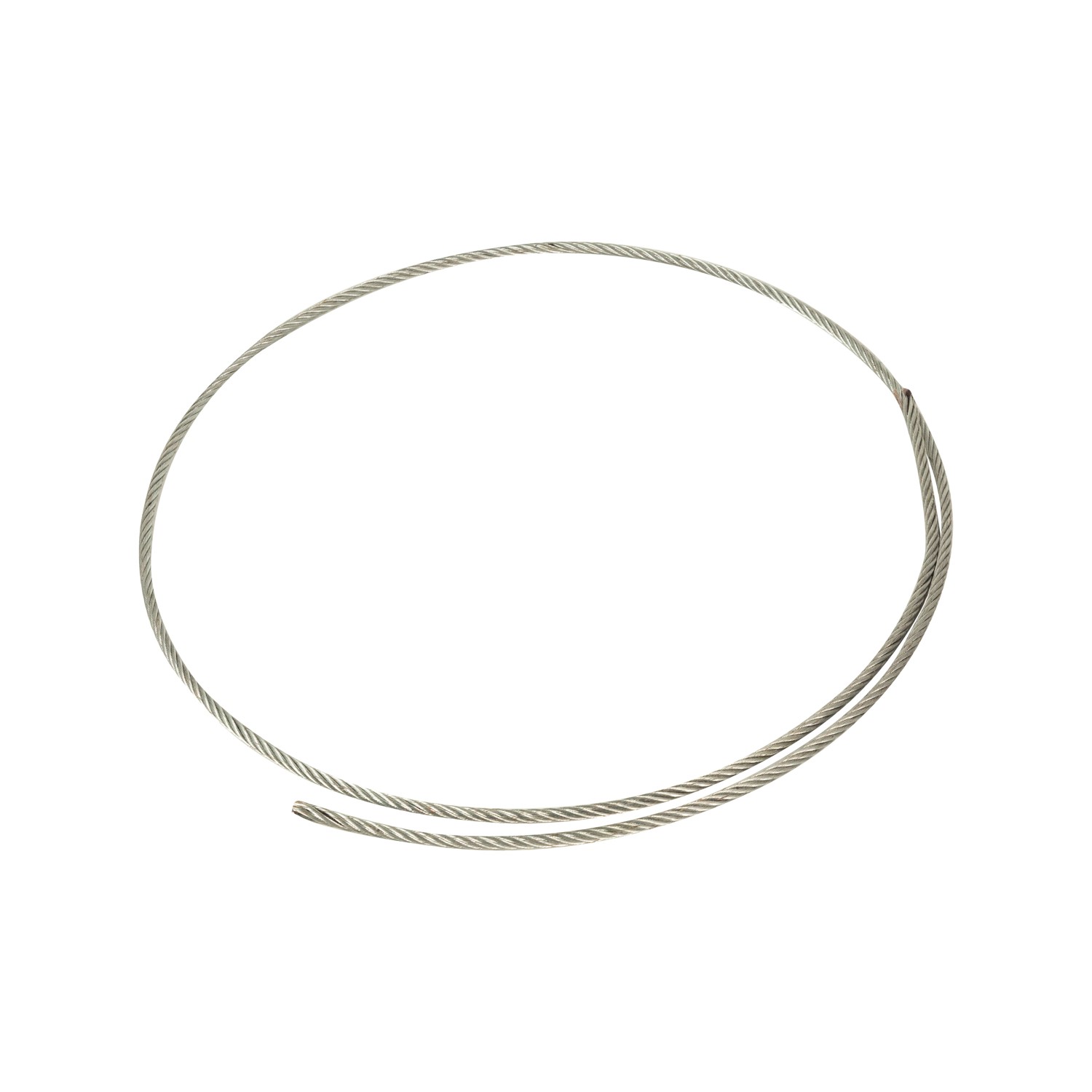

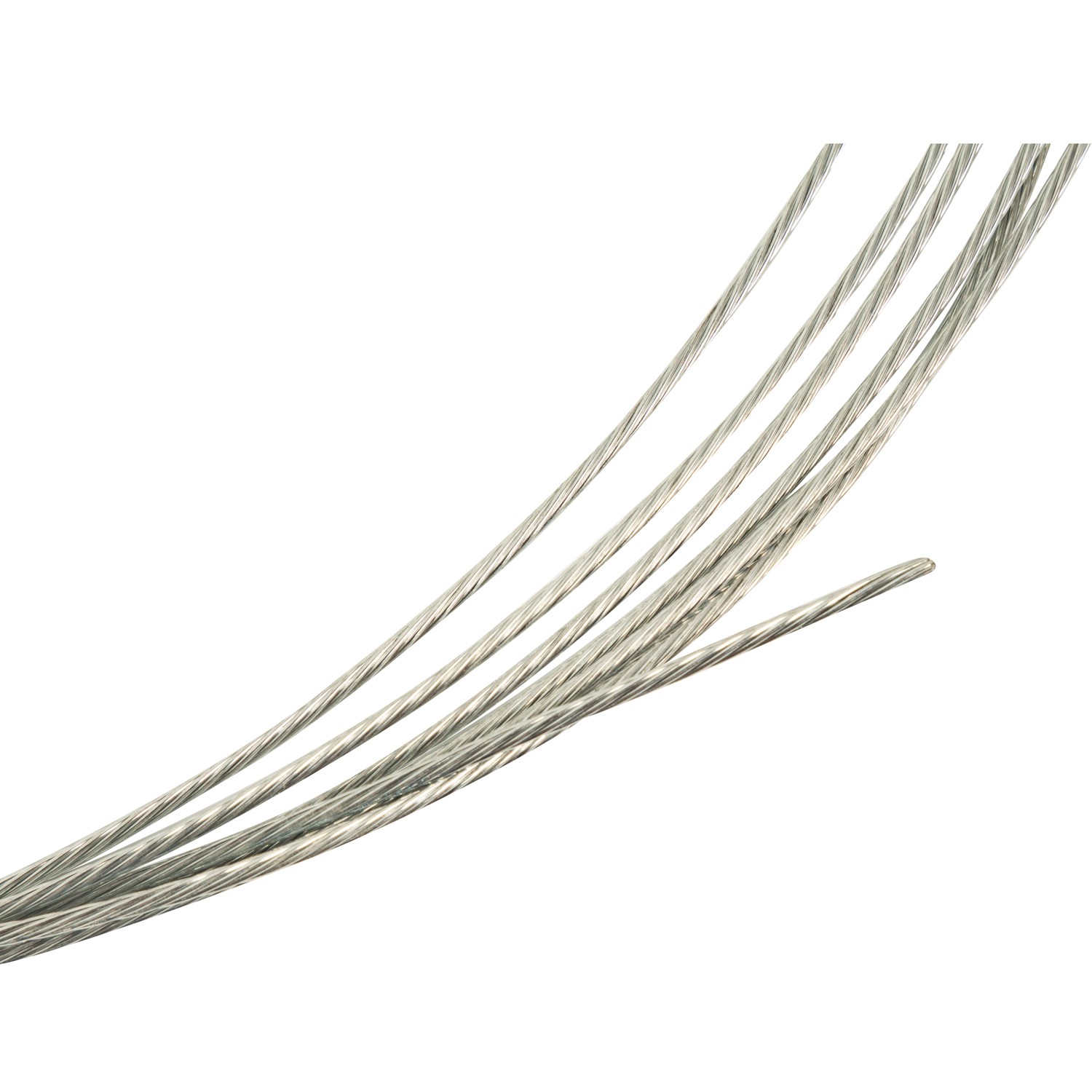

Galvanized steel wire stranded 7/0.7mm

Good zinc coated ,white color ,no dust ,smooth surface .

COMPANY PRODUCTS:

1	Raw materials	high carbon steel rod #60, #70, #72A, #80, #82A, #82B
2	Construction	1x7, 1x19,1X12, 7x7, 7x19,6x19+FC, 6X19+IWRC 6x37+FC,6X37+IWRC,67+FC,77,624+7FC,6X12+7FC,6X15+7FC 619+FC, 6X19+IWRC 6x37+FC, 6X37+IWRC 619S+FC, 6x19S+IWRC 619W+FC, 619W+IWRC 625FI+FC, 625FI+IWRC 6x36WS+FC, 636WS+IWRC 8x19S+FC,8X19S+IWRC 18x7+FC, 18x7+IWS, 19x7 ,35WX7.35WXK7. 6XK36WS,6XK25FI,18XK19 4X25Fi+PP, 4X26WS+PP, 4X31S+PP etc.
3	Surface	GALVANIZED ,UNGALVANIZED ,PVC /PE COATED
4	Diameter Range	2mm-50mm
5	Tensile Strength	1570mpa ,1670mpa ,1770mpa ,1860mpa ,1960mpa
6	Standard	AISI,,DIN.JIS,ASTM,GB,BS etc
7	Packing	wooden reel ,coil packing ,plastic reel
8	MOQ:	2 TONS
9	Delivery time	25 days after receive deposit or LC
10	Terms Payment	T/T ,LC AT SIGHT
