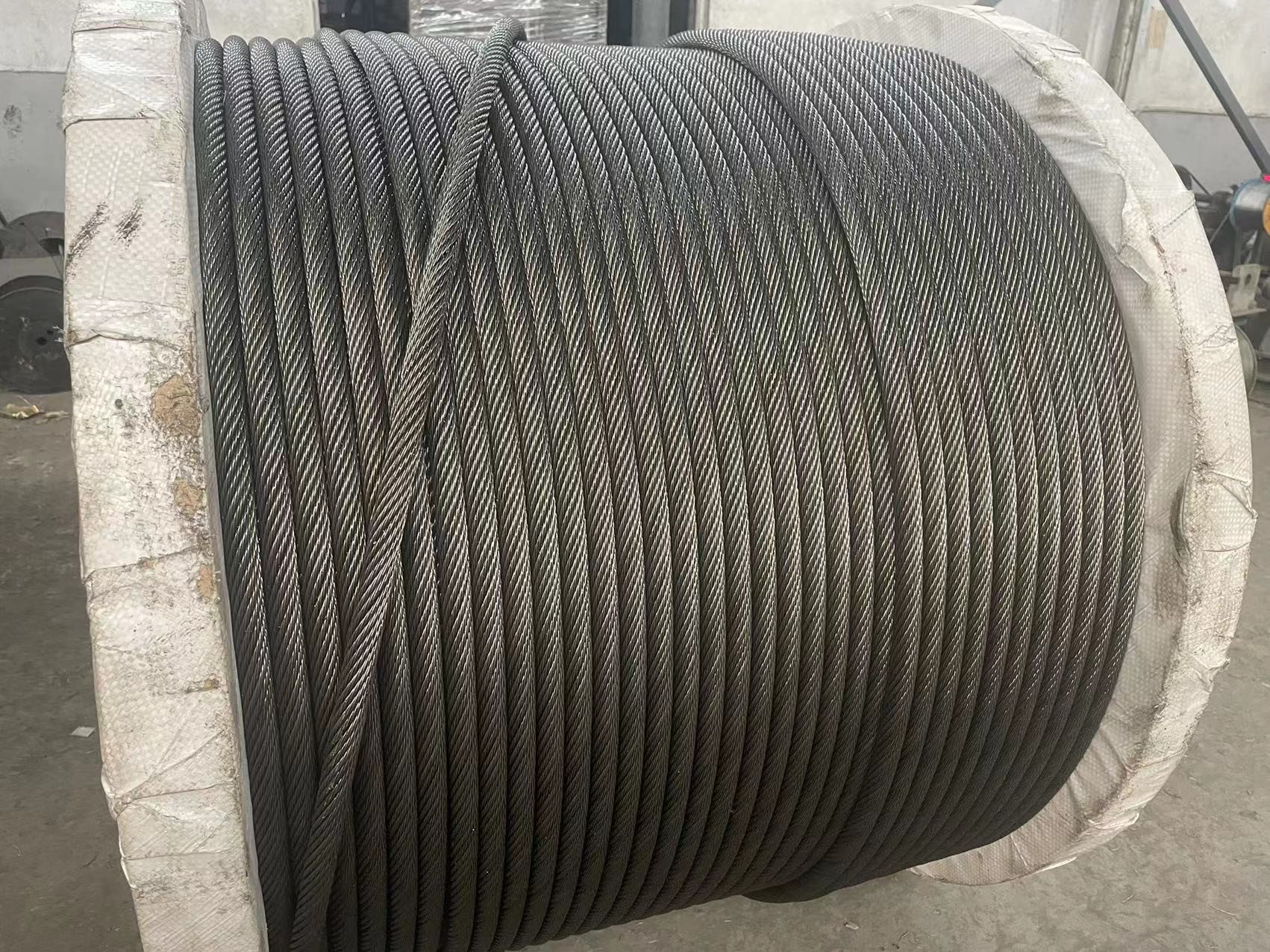

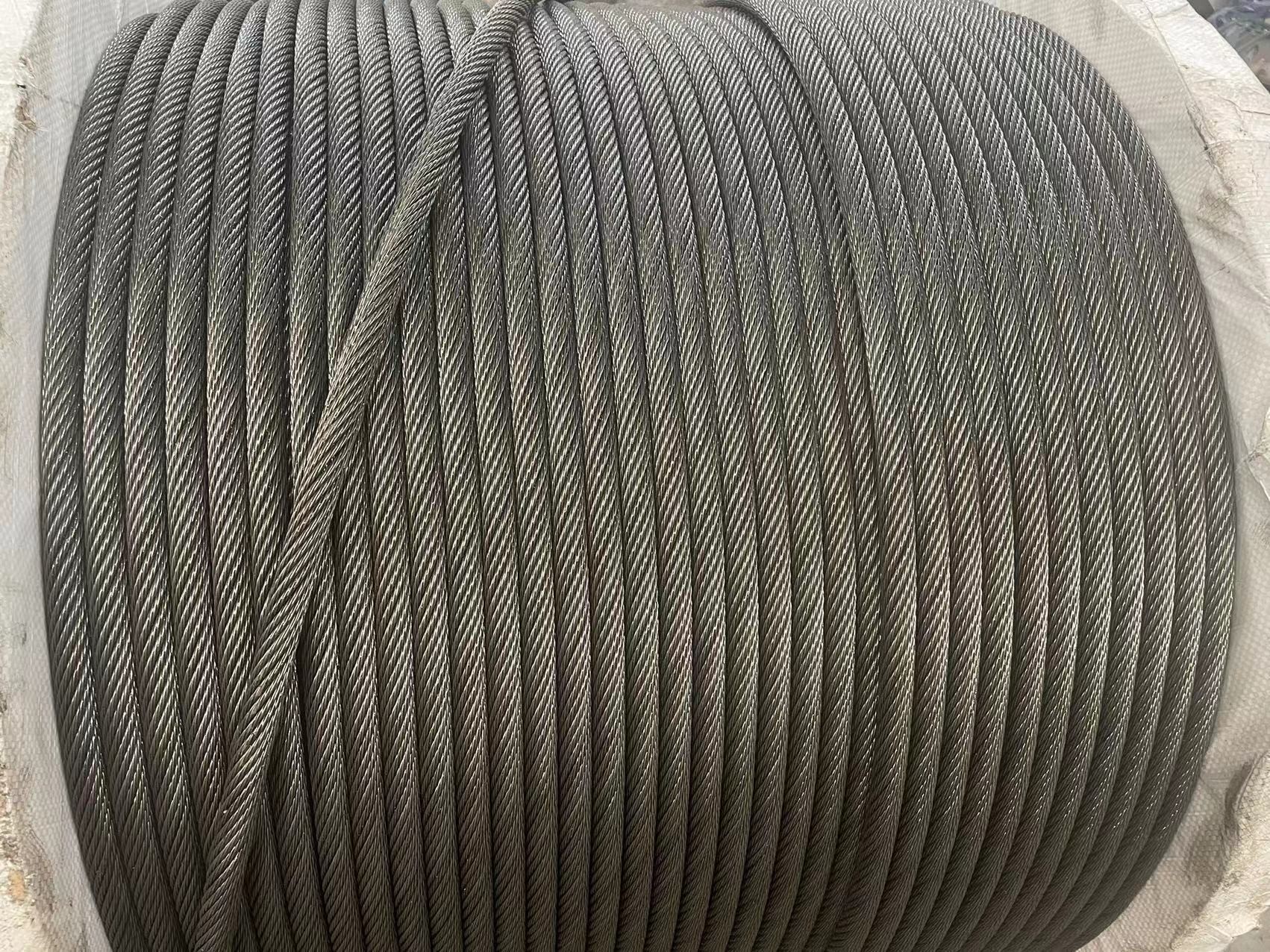

19X7 STEEL WIRE ROPE

Surface: Ungalvanized
Diameter :24mm
Tensile Strength :1770MPA
Length:1000m

WIRE ROPE 6X19S+FC,6X19S+IWRC, CONSTRUCTION:1+9+9

					Nominal Tensile Strength of Rope (MPa)
Nominal Diameter		Approx.Weight			1470		1570		1670		1770		1870
					～		Minimum Breaking Load of Rope
d	Allowed Tolerance	NF	SF	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS
mm	%	kg/100m			KN
4 5 6 7 8 9 10 11 12 13 14 16 18 20 22 24 26 28 30 32 34 36 38 40	+6 0	5.90 9.20 13.30 18.10 23.60 29.90 36.90 44.60 53.10 62.30 72.20 94.40 119.00 147.00 178.00 212.00 249.00 289.00 332.00 377.00 426.00 478.00 532.00 590.00	5.70 9.00 13.00 17.60 23.00 29.90 36.00 43.50 51.80 60.80 70.50 92.10 117.00 144.00 174.00 207.00 243.00 282.00 324.00 369.00 416.00 466.00 520.00 576.00	6.50 10.10 14.60 19.90 25.90 32.80 40.50 49.10 58.40 68.50 79.50 104.00 131.00 162.00 196.00 234.00 274.00 318.00 365.00 415.00 469.00 525.00 585.00 649.00	7.70 12.10 17.50 23.80 31.00 39.30 48.50 58.70 69.90 82.00 95.00 124.00 157.00 194.00 235.00 279.00 328.00 380.00 437.00 497.00 561.00 629.00 700.00 776.00	8.40 13.10 18.80 25.60 33.50 42.40 52.30 63.30 75.40 88.40 103.00 134.00 170.00 209.00 253.00 301.00 354.00 410.00 471.00 536.00 605.00 678.00 756.00 837.00	8.30 13.00 18.70 25.40 33.20 42.00 51.80 62.70 74.60 87.60 102.00 133.00 168.00 207.00 251.00 298.00 350.00 406.00 466.00 531.00 599.00 671.00 748.00 829.00	8.90 14.00 20.10 27.40 35.80 45.30 55.90 67.60 80.50 94.50 110.00 143.00 181.00 224.00 271.00 322.00 378.00 438.00 503.00 572.00 646.00 724.00 807.00 894.00	8.80 13.80 19.80 27.00 35.30 44.60 55.10 66.70 79.40 93.10 108.00 141.00 179.00 220.00 267.00 317.00 373.00 432.00 496.00 564.00 637.00 714.00 796.00 882.00	9.50 14.90 21.40 29.00 38.00 48.20 59.50 77.90 85.60 100.00 117.00 152.00 193.00 238.00 288.00 342.00 402.00 466.00 535.00 609.00 687.00 770.00 858.00 951.00	9.30 14.60 21.00 28.60 37.40 47.30 58.40 70.70 84.10 98.70 114.00 150.00 189.00 234.00 283.00 336.00 395.00 458.00 526.00 598.00 675.00 757.00 843.00 935.00	10.10 15.80 22.70 30.90 40.30 51.00 63.00 76.20 90.70 106.00 124.00 161.00 204.00 252.00 305.00 363.00 426.00 494.00 567.00 645.00 728.00 817.00 910.00 1010.00	9.80 15.40 22.20 30.20 39.50 50.00 61.70 74.70 88.90 104.00 121.00 158.00 200.00 247.00 299.00 355.00 417.00 484.00 555.00 632.00 713.00 800.00 891.00 987.00	10.60 16.60 24.00 32.60 42.60 53.90 66.60 80.60 95.90 113.00 130.00 170.00 216.00 266.00 322.00 383.00 450.00 522.00 599.00 682.00 770.00 863.00 961.00 1070.00

Main Applications：Various equipment for hoisting，derricking,lifting，towing，port load and unload，blast furnace hoisting and oil well drilling.The rope with wire core can be used under the shock load，heated and squeezed conditions.

COMPANY PRODUCTS:

1	Raw materials	high carbon steel rod #60, #70, #72A, #80, #82A, #82B
2	Construction	1x7, 1x19,1X12, 7x7, 7x19,6x19+FC, 6X19+IWRC 6x37+FC,6X37+IWRC,67+FC,77,624+7FC,6X12+7FC,6X15+7FC 619+FC, 6X19+IWRC 6x37+FC, 6X37+IWRC 619S+FC, 6x19S+IWRC 619W+FC, 619W+IWRC 625FI+FC, 625FI+IWRC 6x36WS+FC, 636WS+IWRC 8x19S+FC,8X19S+IWRC 18x7+FC, 18x7+IWS, 19x7 ,35WX7.35WXK7. 6XK36WS,6XK25FI,18XK19 4X25Fi+PP, 4X26WS+PP, 4X31S+PP etc.
3	Surface	GALVANIZED ,UNGALVANIZED ,PVC /PE COATED
4	Diameter Range	2mm-50mm
5	Tensile Strength	1570mpa ,1670mpa ,1770mpa ,1860mpa ,1960mpa
6	Standard	AISI,,DIN.JIS,ASTM,GB,BS etc

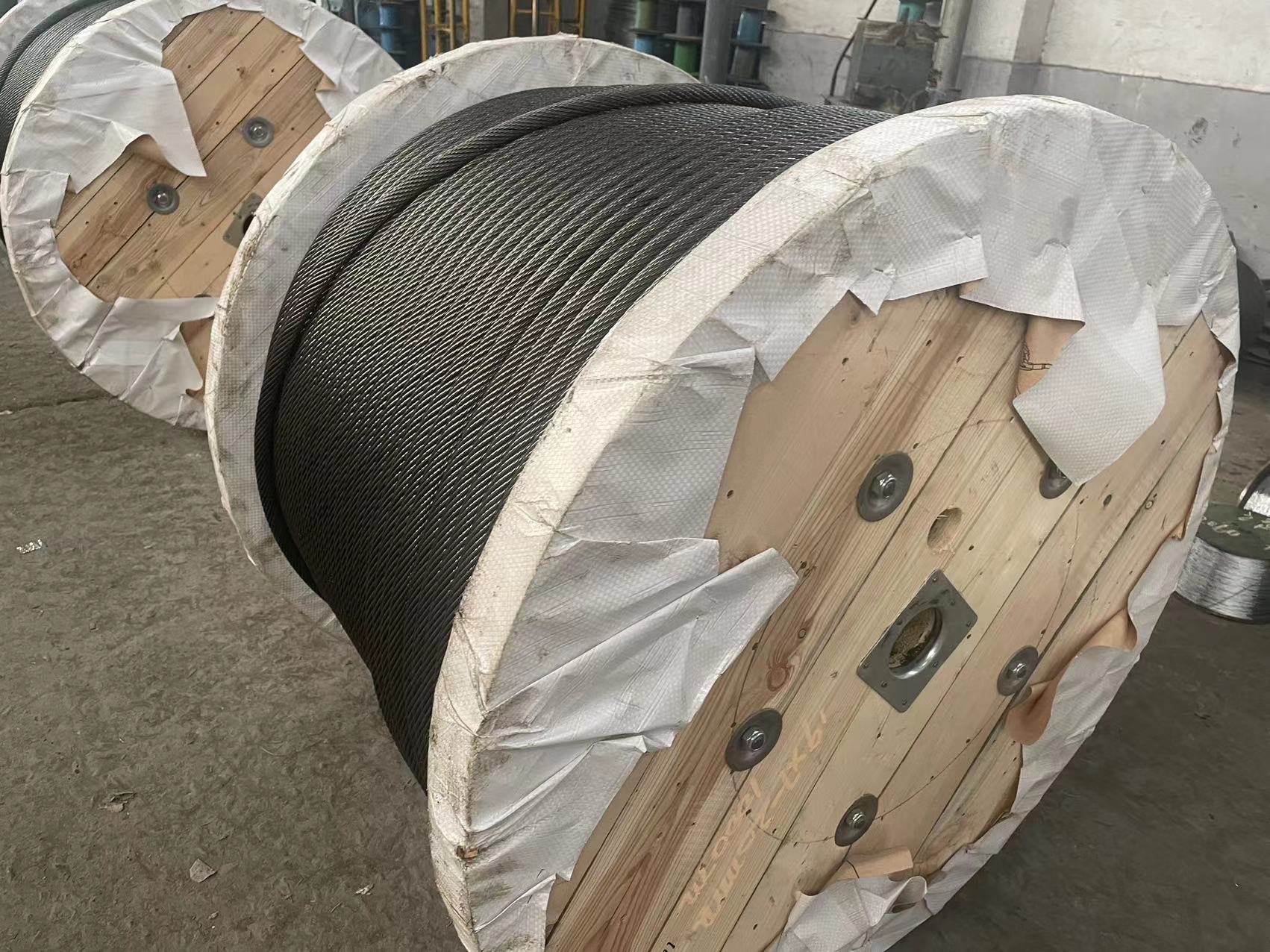

7	Packing	wooden reel ,coil packing ,plastic reel
8	MOQ:	2 TONS
9	Delivery time	25 days after receive deposit or LC
10	Terms Payment	T/T ,LC AT SIGHT
