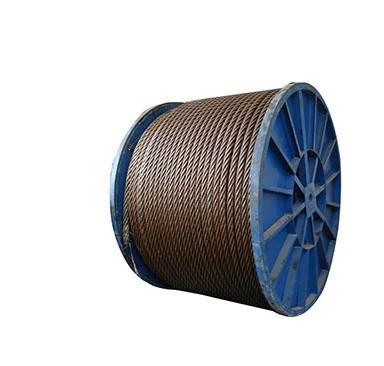

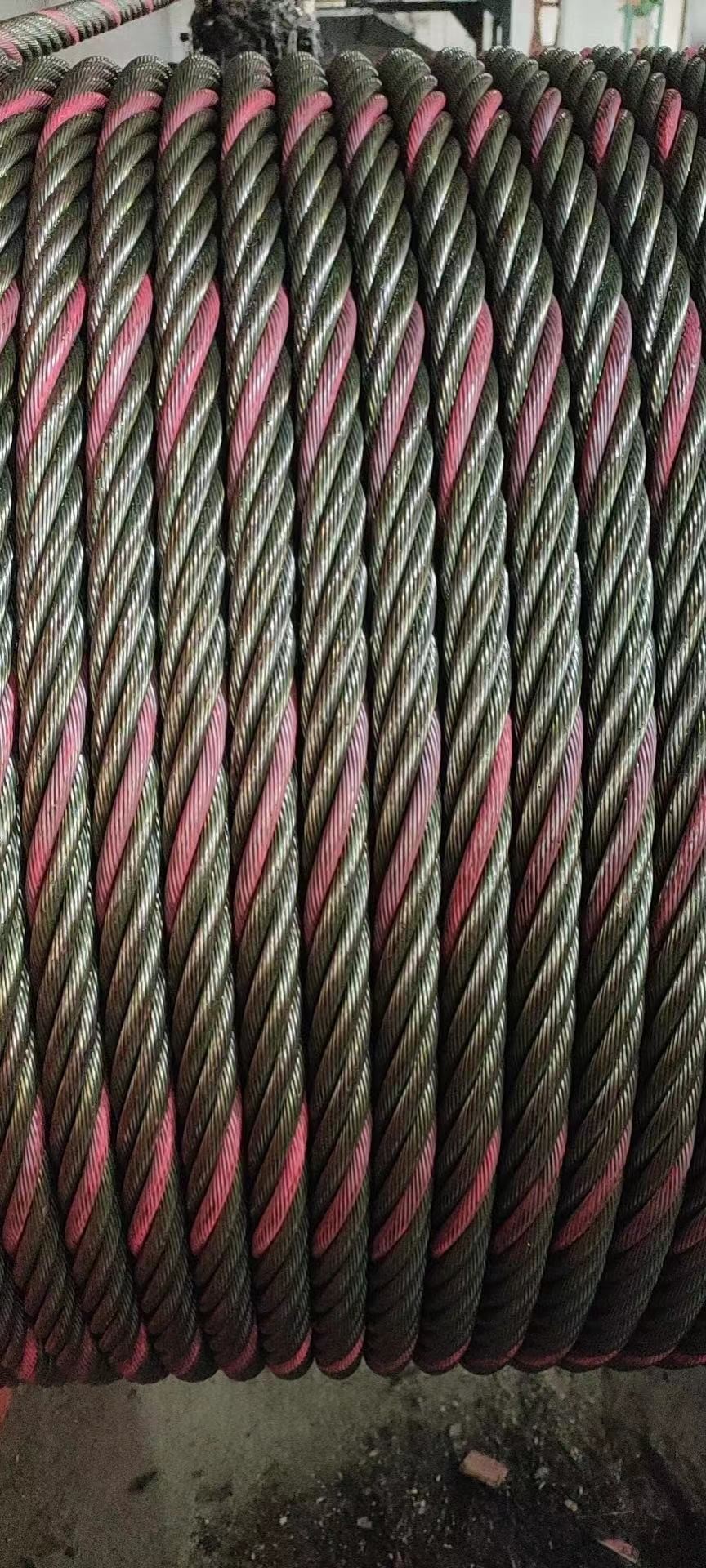

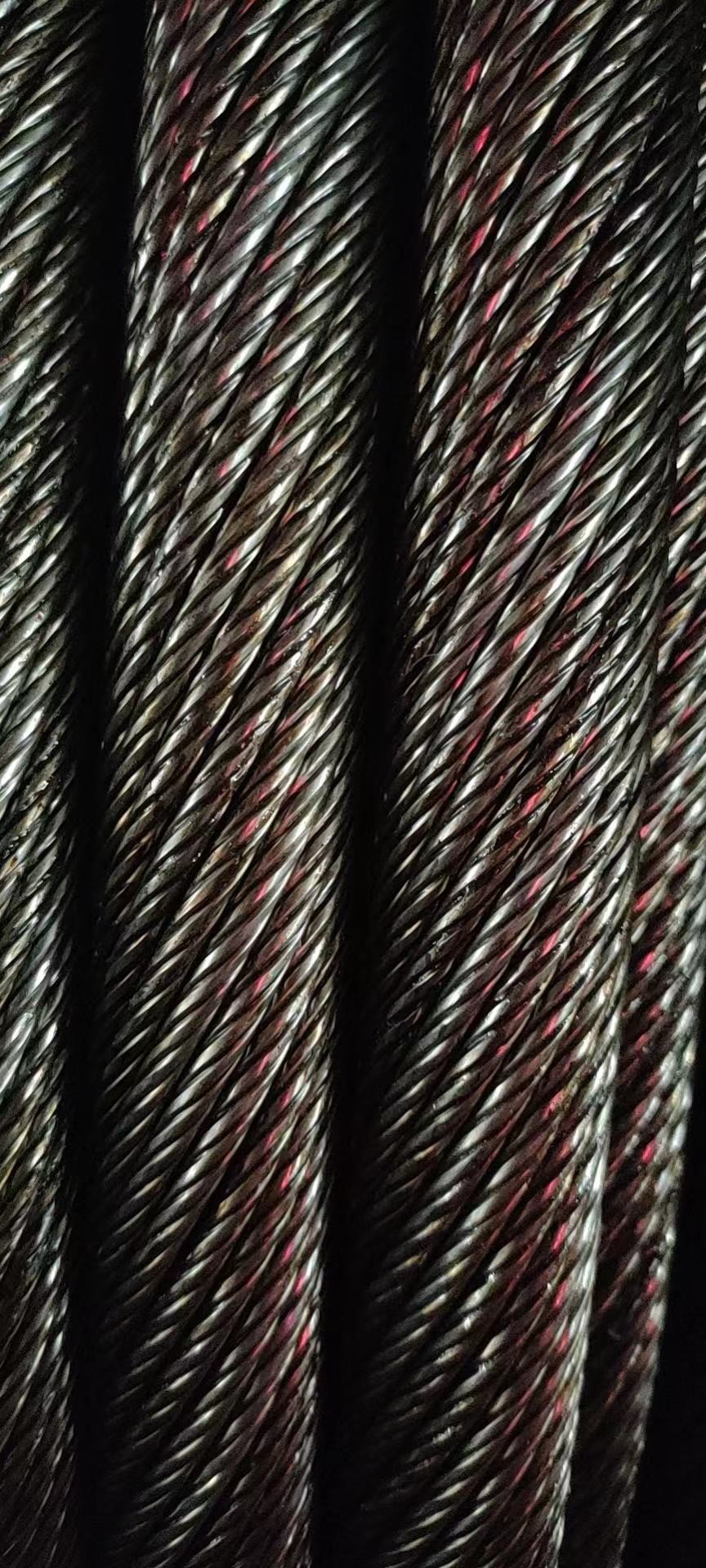

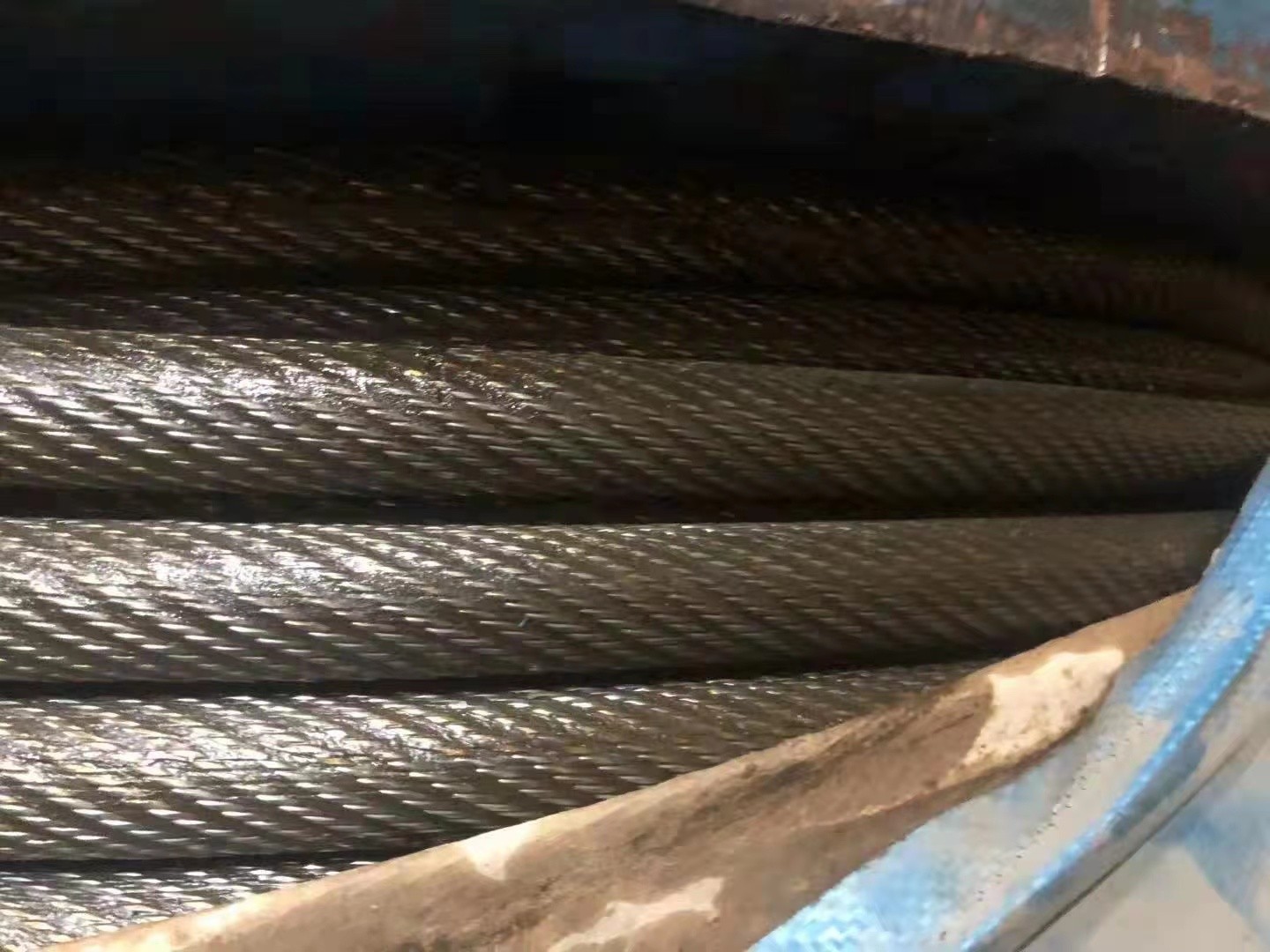

6*K36WS Compacted Strand Wire Rope

Surface: Ungalvanized
Diameter :14mm
Tensile Strength :1770MPA
Length:1000m

WIRE ROPE 6X36SW+FC, 6X36SW+IWRC, CONSTRUCTION: 1+7+7/7+14

							Nominal Tensile Strength of Rope(MPa)
Nominal Diameter		Approx.Weight			1470		1570		1670		1770		1870
					Minimum Breaking Load of Rope
d	Allowed Tolerance	NF	SF	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS
mm	%	kg/100m			KN
6 7 8 9 10 11 12 13 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60 62 64 66 68 70 72 74 76 78 80	十6 0	13.70 18.60 24.30 30.80 38.00 46.00 54.70 64.20 74.50 97.30 123.00 152.00 184.00 219.00 257.00 298.00 342.00 389.00 439.00 492.00 549.00 608.00 670.00 736.00 804.00 876.00 950.00 1030.00 1110.00 1190.00 1280.00 1370.00 1460.00 1560.00 1660.00 1760.00 1860.00 1970.00 2080.00 2190.00 2310.00 2430.00	12.90 17.60 23.00 30.10 37.00 44.90 53.40 62.70 72.70 95.00 120.00 148.00 180.00 214.00 251.00 291.00 334.00 380.00 429.00 461.00 536.00 594.00 654.00 778.00 785.00 855.00 928.00 1000.00 1080.00 1160.00 1250.00 1340.00 1430.00 1520.00 1620.00 1720.00 1820.00 1920.00 2030.00 2140.00 2260.00 2370.00	15.10 20.50 26.80 33.90 41.80 50.60 60.20 70.60 81.90 107.00 135.00 167.00 202.00 241.00 283.00 328.00 376.00 428.00 483.00 542.00 604.00 669.00 737.00 809.00 884.00 963.00 1050.00 1130.00 1220.00 1310.00 1410.00 1500.00 1610.00 1710.00 1820.00 1930.00 2050.00 2170.00 2290.00 2410.00 2540.00 2680.00	17.40 23.70 31.00 39.30 48.50 58.70 69.90 82.00 95.10 124.00 157.00 194.00 235.00 279.00 328.00 380.00 437.00 497.00 561.00 629.00 700.00 776.00 856.00 939.00 1030.00 1120.00 1210.00 1310.00 1410.00 1520.00 1630.00 1750.00 1860.00 1990.00 2110.00 2240.00 2380.00 2510.00 2660.00 2800.00 2950.00 3100.00	18.80 25.60 33.50 42.40 52.30 63.30 75.40 88.40 103.00 134.00 170.00 209.00 253.00 301.00 354.00 410.00 471.00 536.00 605.00 678.00 756.00 837.00 923.00 1070.00 1110.00 1210.00 1310.00 1420.00 1530.00 1640.00 1760.00 1880.00 2010.00 2140.00 2280.00 2420.00 2560.00 2710.00 2870.00 3020.00 3180,00 3350.00	18.70 25.40 33.20 42.00 51.80 62.70 74.60 87.60 102.00 133.00 168.00 207.00 251.00 298.00 350.00 406.00 466.00 531.00 599.00 671.00 748.00 829.00 914.00 1000.00 1100.00 1190.00 1300.00 1400.00 1570.00 1620.00 1740.00 1870.00 1990.00 2120.00 2260.00 2400.00 2540.00 2690.00 2840.00 2990.00 3150.00 3320.00	20.10 27.40 35.80 45.30 55.90 67.60 80.50 94.50 110.00 143.00 181.00 224.00 271.00 322.00 378.00 438.00 503.00 572.00 646.00 724.00 807.00 894.00 986.00 1080.00 1180.00 1290.00 1400.00 1510.00 1630.00 1750.00 1880.00 2010.00 2150.00 2290.00 2430.00 2580.00 2740.00 2900.00 3060.00 3230.00 3400.00 3580.00	17.10 27.00 35.30 44.60 55.10 66.70 79.40 93.10 108.00 141.00 179.00 220.00 267.00 317.00 373.00 432.00 496.00 564.00 637.00 714.00 796.00 882.00 972.00 1070.00 1170.00 1270.00 1380.00 1490.00 1610.00 1730.00 1850.00 1980.00 2120.00 2260.00 2400.00 2550.00 2700.00 2860.00 3020.00 3180.00 3350.00 3530.00	21.40 29.10 38.00 48.20 59.50 71.90 85.60 100.00 117.00 152.00 193.00 238.00 288.00 342.00 402.00 466.00 535.00 609.00 687.00 770.00 858.00 951.00 1050.00 1150.00 1260.00 1370.00 1490.00 1610.00 1730.00 1860.00 2000.00 2140.00 2290.00 2440.00 2590.00 2750.00 2910.00 3080.00 3260.00 3430.00 3620.00 3800.00	21.00 28.60 37.40 47.30 58.40 70.70 84.10 98.70 114.00 150.00 189.00 234.00 283.00 336.00 395.00 458.00 526.00 598.00 675.00 757.00 843.00 935.00 1030.00 1130.00 1240.00 1350.00 1460.00 1580.00 1700.00 1830.00 1960.00 2100.00 2250.00 2390.00 2540.00 2700.00 2860.00 3030.00 3200.00 3370.00 3550.00 3740.00	22.70 30.80 40.30 51.00 63.00 76.20 90.70 106.00 124.00 161.00 204.00 252.00 305.00 363.00 426.00 494.00 567.00 645.00 728.00 877.00 910.00 1070.00 1110.00 1220.00 1330.00 1450.00 1580.00 1700.00 1840.00 1980.00 2120.00 2270.00 2420.00 2580.00 2740.00 2910.00 3090.00 3270.00 3450.00 3640.00 3830.00 4030.00	22.20 30.20 39.50 50.00 61.70 74.70 88.90 104.00 121.00 158.00 200.00 247.00 299.00 355.00 417.00 484.00 555.00 632.00 713.00 800.00 891.00 987.00 1090.00 1190.00 1310.00 1420.00 1540.00 1670.00 1800.00 1940.00 2080.00 2220.00 2370.00 2530.00 2690.00 2850.00 3020.00 3200.00 3380.00 3560.00 3750.00 3950.00	24.00 32.60 42.60 53.90 66.60 80.60 95.90 113.00 130.00 170.00 216.00 266.00 322.00 383.00 450.00 522.00 599.00 682.00 770.00 863.00 961.00 1070.00 1170.00 1290.00 1410.00 1530.00 1660.00 1800.00 1940.00 2090.00 2240.00 2400.00 2560.00 2730.00 2900.00 3080.00 3260.00 3450.00 3650.00 3850.00 4050.00 4260.00

Main Appplications：Various equipment for derricking, lifting and drawing;the rope with wire core can be used under the shock load,heated and squeezed conditions such as electric shares.

COMPANY PRODUCTS:

1	Raw materials	high carbon steel rod #60, #70, #72A, #80, #82A, #82B
2	Construction	1x7, 1x19,1X12, 7x7, 7x19,6x19+FC, 6X19+IWRC 6x37+FC,6X37+IWRC,67+FC,77,624+7FC,6X12+7FC,6X15+7FC 619+FC, 6X19+IWRC 6x37+FC, 6X37+IWRC 619S+FC, 6x19S+IWRC 619W+FC, 619W+IWRC 625FI+FC, 625FI+IWRC 6x36WS+FC, 636WS+IWRC 8x19S+FC,8X19S+IWRC 18x7+FC, 18x7+IWS, 19x7 ,35WX7.35WXK7. 6XK36WS,6XK25FI,18XK19 4X25Fi+PP, 4X26WS+PP, 4X31S+PP etc.
3	Surface	GALVANIZED ,UNGALVANIZED ,PVC /PE COATED
4	Diameter Range	2mm-50mm
5	Tensile Strength	1570mpa ,1670mpa ,1770mpa ,1860mpa ,1960mpa
6	Standard	AISI,,DIN.JIS,ASTM,GB,BS etc

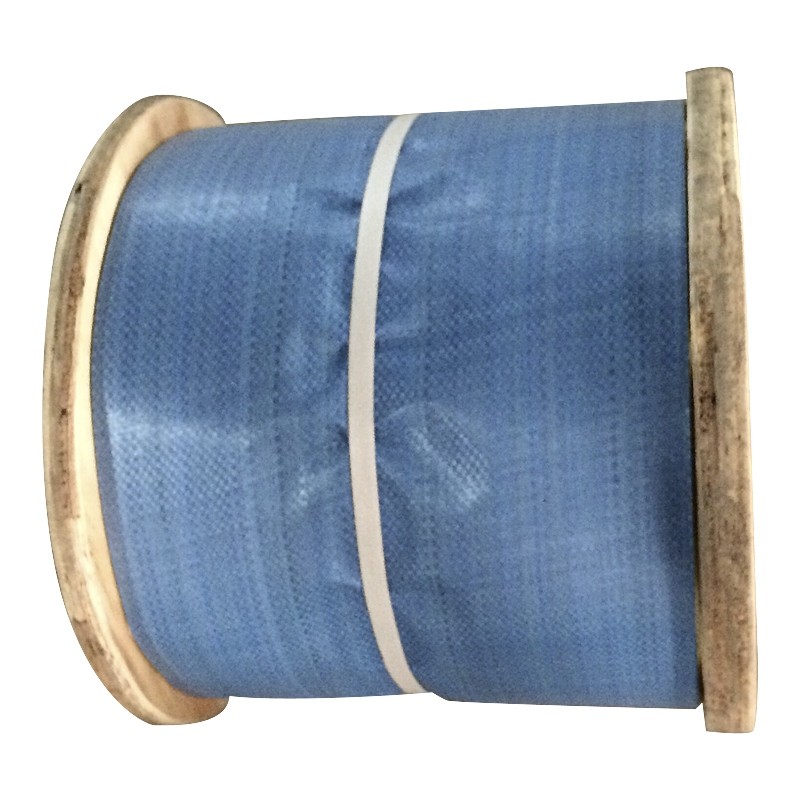

7	Packing	wooden reel ,coil packing ,plastic reel
8	MOQ:	2 TONS
9	Delivery time	25 days after receive deposit or LC
10	Terms Payment	T/T ,LC AT SIGHT
