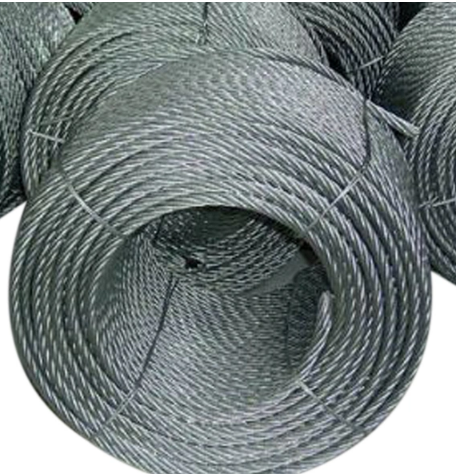

6X12+7FC STEEL WIRE ROPE

1470

1570

1670

1770

1870

d

Allowed
Tolerance

NF

SF

Minimum Breaking Load of Rope

mm

%

kg/100m

KN

3
4
5
6
7
8
9
10
11
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46

十7


0

2.26
4.02
6.28
9.04
12.30
16.10
20.30
25.10
30.40
36.10
49.20
64.30
81.30
100.00
127.00
145.00
170.00
197.00
226.00
257.00
290.00
325.00
362.00
402.00
443.00
486.00
531.00

2.08
3.70
5.78
8.32
11.30
14.80
18.70
23.10
28.00
33.30
45.30
59.10
74.80
92.40
112.00
133.00
156.00
181.00
208.00
237.00
267.00
299.00
334.00
370.00
407.00
447.00
489.00

2.77
4.92
7.68
11.10
15.10
19.70
24.90
30.70
37.20
44.20
60.20
78.70
99.50
123.00
149.00
177.00
208.00
241.00
277.00
315.00
355.00
398.00
444.00
492.00
542.00
595.00
650.00

2.95
5.25
8.20
11.80
16.10
21.00
26.60
32.80
39.70
47.30
64.30
84.00
106.00
131.00
159.00
189.00
222.00
257.00
295.00
336.00
379.00
425.00
474.00
525.00
579.00
635.00
694.00

3.14
5.58
8.73
12.60
17.10
22.30
28.30
34.90
42.20
50.30
68.40
89.40
113.00
140.00
169.00
201.00
236.00
274.00
314.00
357.00
403.00
452.00
504.00
558.00
616.00
676.00
739.00

3.33
5.92
9.25
13.30
18.10
23.70
30.00
37.00
44.80
53.30
72.50
94.70
120.00
148.00
179.00
213.00
250.00
290.00
333.00
379.00
428.00
479.00
534.00
592.00
653.00
716.00
783.00

3.52
6.25
9.77
14.10
19.20
25.00
31.70
39.10
47.30
56.30
76.60
100.00
127.00
156.00
189.00
225.00
264.00
306.00
352.00
400.00
452.00
507.00
564.00
625.00
689.00
757.00
827.00
