6X15+7FC STEEL WIRE ROPE

Surface: Ungalvanized /Galvanized
Diameter :3-24mm
Tensile Strength :1770MPA
Length:1000m
Main Applications:Towboat goods net,floating transportation of wood,bunding etc.

WIRE ROPE 6X15+7FC, CONSTRUCTION: 0+15

				Nominal Tensile Strength of Rope(MPa)
Nominal Diameter		Approx.Weight		1470	1570	1670	1770	1870
d	Allowed Tolerance	NF	SF	Minimum Breaking Load of Rope
mm	%	kg/100m		KN
4 5 6 7 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44	十7 0	3.20 5.00 7.20 9.80 12.80 20.00 28.80 39.20 51.20 64.80 80.00 96.80 115.00 135.00 157.00 180.00 205.00 231.00 259.00 289.00 320.00 353.00 387.00	2.90 4.60 6.60 9.10 11.80 18.50 26.60 36.30 47.40 59.90 74.00 89.50 107.00 125.00 145.00 167.00 189.00 214.00 240.00 267.00 296.00 326.00 358.00	4.20 6.60 9.50 12.90 16.90 26.50 38.10 51.90 67.70 85.70 106.00 128.00 152.00 179.00 207.00 238.00 271.00 306.00 343.00 380.00 420.00 470.00 510.00	4.50 7.10 10.20 13.80 18.10 28.30 40.70 55.40 72.30 91.60 113.00 137.00 163.00 191.00 222.00 254.00 289.00 327.00 370.00 410.00 450.00 500.00 550.00	4.80 7.50 10.80 14.70 19.20 30.10 43.30 58.90 77.00 97.40 120.00 145.00 173.00 203.00 236.00 271.00 308.00 350.00 390.00 430.00 480.00 530.00 580.00	5.10 7.90 11.40 15.60 20.40 31.90 45.90 62.40 81.60 103.00 127.00 154.00 184.00 215.00 250.00 287.00 326.00 370.00 410.00 460.00 510.00 560.00 620.00	5.40 8.40 12.10 16.50 21.50 33.70 48.50 66.00 86.20 109.00 135.00 163.00 194.00 228.00 264.00 303.00 345.00 389.00 436.00 486.00 539.00 594.00 652.00

Main Applications:Towboat goods net,floating transportation of wood,bunding etc.

COMPANY PRODUCTS:

1	Raw materials	high carbon steel rod #60, #70, #72A, #80, #82A, #82B
2	Construction	1x7, 1x19,1X12, 7x7, 7x19,6x19+FC, 6X19+IWRC 6x37+FC,6X37+IWRC,67+FC,77,624+7FC,6X12+7FC,6X15+7FC 619+FC, 6X19+IWRC 6x37+FC, 6X37+IWRC 619S+FC, 6x19S+IWRC 619W+FC, 619W+IWRC 625FI+FC, 625FI+IWRC 6x36WS+FC, 636WS+IWRC 8x19S+FC,8X19S+IWRC 18x7+FC, 18x7+IWS, 19x7 ,35WX7.35WXK7. 6XK36WS,6XK25FI,18XK19 4X25Fi+PP, 4X26WS+PP, 4X31S+PP etc.
3	Surface	GALVANIZED ,UNGALVANIZED ,PVC /PE COATED
4	Diameter Range	2mm-50mm
5	Tensile Strength	1570mpa ,1670mpa ,1770mpa ,1860mpa ,1960mpa
6	Standard	AISI,,DIN.JIS,ASTM,GB,BS etc

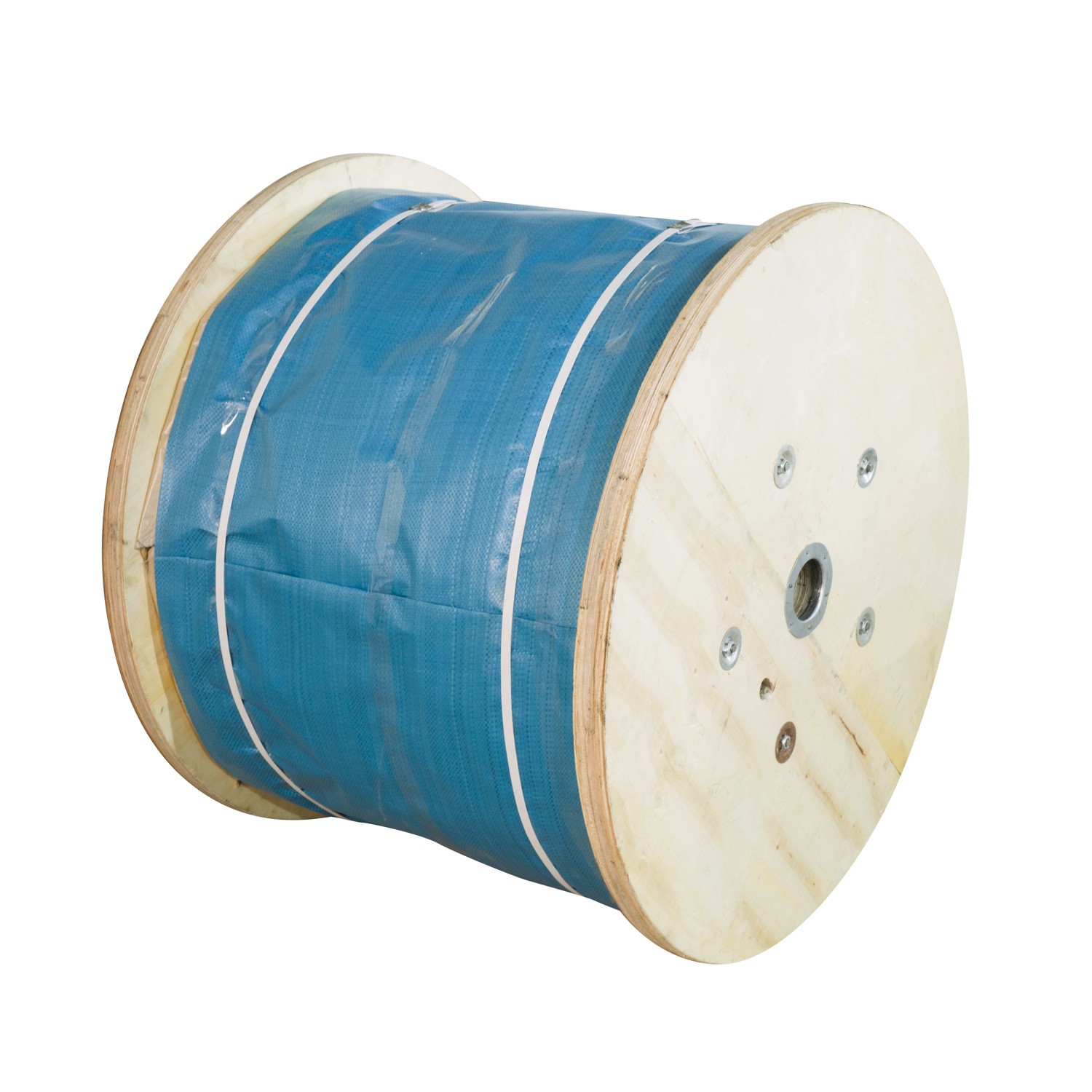

7	Packing	wooden reel ,coil packing ,plastic reel
8	MOQ:	2 TONS
9	Delivery time	25 days after receive deposit or LC
10	Terms Payment	T/T ,LC AT SIGHT
