6X24+7FC STEEL WIRE ROPE

Surface: Ungalvanized /Galvanized
Diameter :3-24mm
Tensile Strength :1770MPA
Length:1000m
Main Applications:Towboat goods net,floating transportation of wood,bunding etc.

WIRE ROPE 6X24+7FC, CONSTRUCTION: 0+9+15

Nominal Diameter		Approx.Weight		Nominal Tensile Strength of Rope(MPa)
				1470	1570	1670	1770	1870
d	Allowed Tolerance	NF	SF	Minimum Breaking Load of Rope
mm	%	kg/100m		KN
6 7 8 9 10 11 12 13 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52	十7 0	11.40 15.60 20.40 25.80 31.80 38.50 45.80 53.70 62.30 81.40 103.00 127.00 154.00 183.00 215.00 249.00 286.00 326.00 368.00 412.00 459.00 509.00 561.00 616.00 673.00 733.00 795.00 860.00	10.90 14.90 19.50 24.60 30.40 36.80 43.80 51.40 59.60 77.80 98.50 122.00 147.00 175.00 206.00 238.00 274.00 311.00 351.00 394.00 439.00 486.00 536.00 589.00 643.00 700.00 760.00 822.00	14.80 20.20 26.30 33.30 41.20 49.80 59.30 69.60 80.70 105.00 133.00 165.00 199.00 237.00 278.00 323.00 370.00 421.00 476.00 533.00 594.00 659.00 726.00 797.00 871.00 948.00 1030.00 1113.00	15.80 21.50 28.10 35.60 44.00 53.20 63.30 74.30 86.20 113.00 142.00 176.00 213.00 253.00 297.00 345.00 396.00 450.00 508.00 570.00 635.00 703.00 775.00 851.00 930.00 1013.00 1100.00 1190.00	16.80 22.90 29.90 37.90 46.80 56.60 67.30 79.00 91.60 120.00 152.00 187.00 226.00 269.00 316.00 367.00 421.00 479.00 541.00 606.00 675.00 748.00 825.00 905.00 989.00 1080.00 1180.00 1264.00	17.80 24.30 31.70 40.10 49.60 60.00 71.40 83.80 97.10 127.00 161.00 198.00 240.00 285.00 335.00 389.00 446.00 507.00 573.00 642.00 716.00 793.00 874.00 959.00 1050.00 1142.00 1240.00 1340.00	18.80 25.70 33.50 42.40 52.40 63.40 75.40 88.50 103.00 134.00 170.00 209.00 253.00 302.00 354.00 411.00 471.00 536.00 605.00 679.00 756.00 838.00 924.00 1013.00 1108.00 1210.00 1309.00 1416.00

Main Applications:Towboat,goods net,floating transportation of wood,bundling etc.

COMPANY PRODUCTS:

1	Raw materials	high carbon steel rod #60, #70, #72A, #80, #82A, #82B
2	Construction	1x7, 1x19,1X12, 7x7, 7x19,6x19+FC, 6X19+IWRC 6x37+FC,6X37+IWRC,67+FC,77,624+7FC,6X12+7FC,6X15+7FC 619+FC, 6X19+IWRC 6x37+FC, 6X37+IWRC 619S+FC, 6x19S+IWRC 619W+FC, 619W+IWRC 625FI+FC, 625FI+IWRC 6x36WS+FC, 636WS+IWRC 8x19S+FC,8X19S+IWRC 18x7+FC, 18x7+IWS, 19x7 ,35WX7.35WXK7. 6XK36WS,6XK25FI,18XK19 4X25Fi+PP, 4X26WS+PP, 4X31S+PP etc.
3	Surface	GALVANIZED ,UNGALVANIZED ,PVC /PE COATED
4	Diameter Range	2mm-50mm
5	Tensile Strength	1570mpa ,1670mpa ,1770mpa ,1860mpa ,1960mpa
6	Standard	AISI,,DIN.JIS,ASTM,GB,BS etc

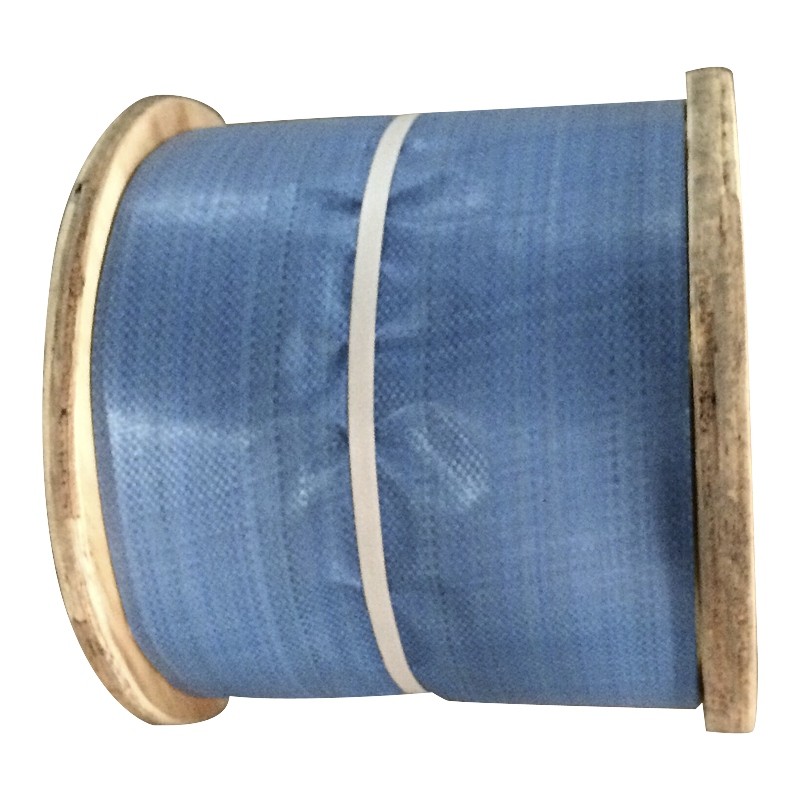

7	Packing	wooden reel ,coil packing ,plastic reel
8	MOQ:	2 TONS
9	Delivery time	25 days after receive deposit or LC
10	Terms Payment	T/T ,LC AT SIGHT
